PVC Pipe Slotting Machine

Precio del producto

Precio a consultar

Información de pago y envío

Método de pago Transferencia Swift , Paypal
Zonas comerciales Mercado internacional
Información de envíoEXW, FOB, CFR/CIF

PVC Pipe Slotting Machine

Kuber International

Detalles del producto

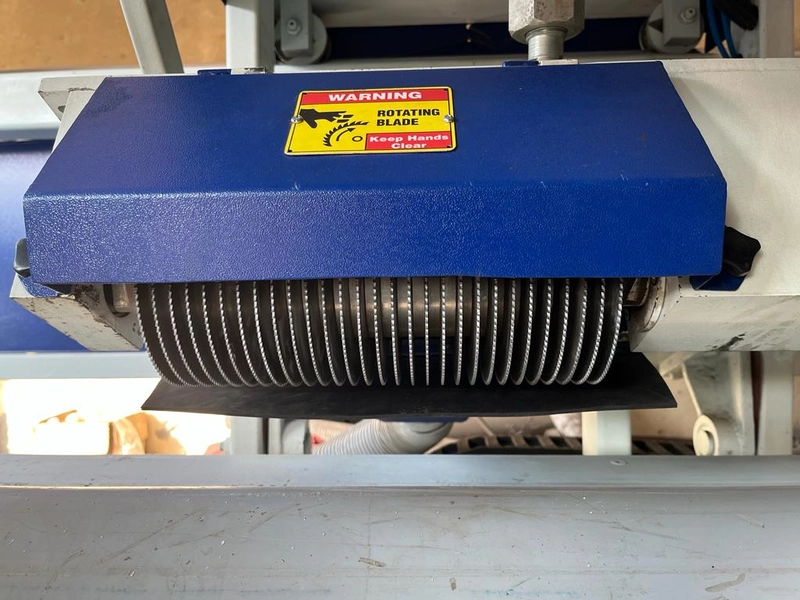

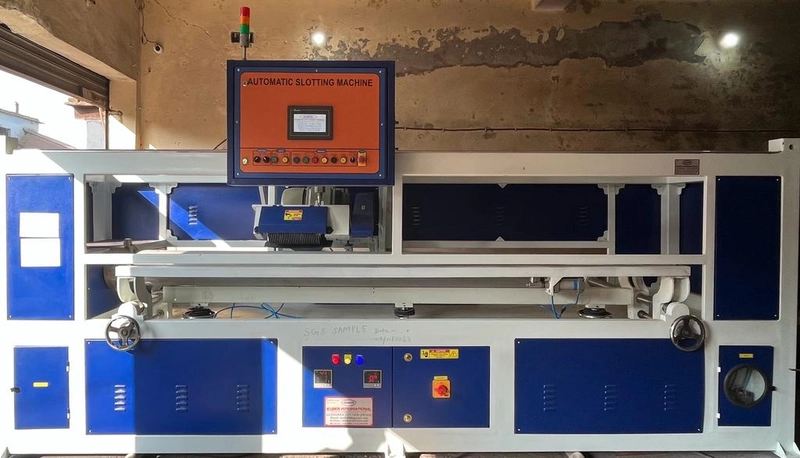

Kuber International presents a PVC pipe slotting machine, a specialized industrial device designed to create evenly spaced slots along the length of PVC pipes. These slots are primarily used for applications like water drainage, irrigation systems, and underground borewells. The machine automatically cuts precise longitudinal or circumferential slots into PVC pipes and can be customized for various pipe diameters and slot patterns. Key components include a pipe feeding system that supports manual feeding, a slotting unit with high-speed rotating blades, PLC control for accuracy in slot positioning and depth, and adjustable slot width, depth, and spacing. The clamping and rotation system holds the pipe in place and rotates it if needed for spiral or circumferential slotting, ensuring uniform cutting. The control panel features touchscreen control and allows programming of slotting parameters like pitch, depth, and pipe length. An optional dust collection system with integrated vacuum or blower removes PVC dust and chips to keep the workspace clean and extend machine life. Technical specifications include a pipe diameter range of 50 mm to 250 mm, slot width from 1 mm to 5 mm, slot length up to 100 mm, slotting speed of 1 to 5 meters per minute, PLC control system with HMI, 3-phase 380V 50/60Hz power supply, and HSS rotary cutters.

Origen del producto India
BrandKUBER

Especificaciones

Automatic PVC Pipe Slotting Machine is available in 3m and 6m pipe length
